- 本機能適用各種材料:紙類、PVC、PP等。
- 主要功能為:自動對邊原料架,可以修邊分條,自動標頭燙金或烙印,各種類型的打孔模具,自動分段字模燙金或烙印、自動廣告紙送料、分段卡自動包裝。

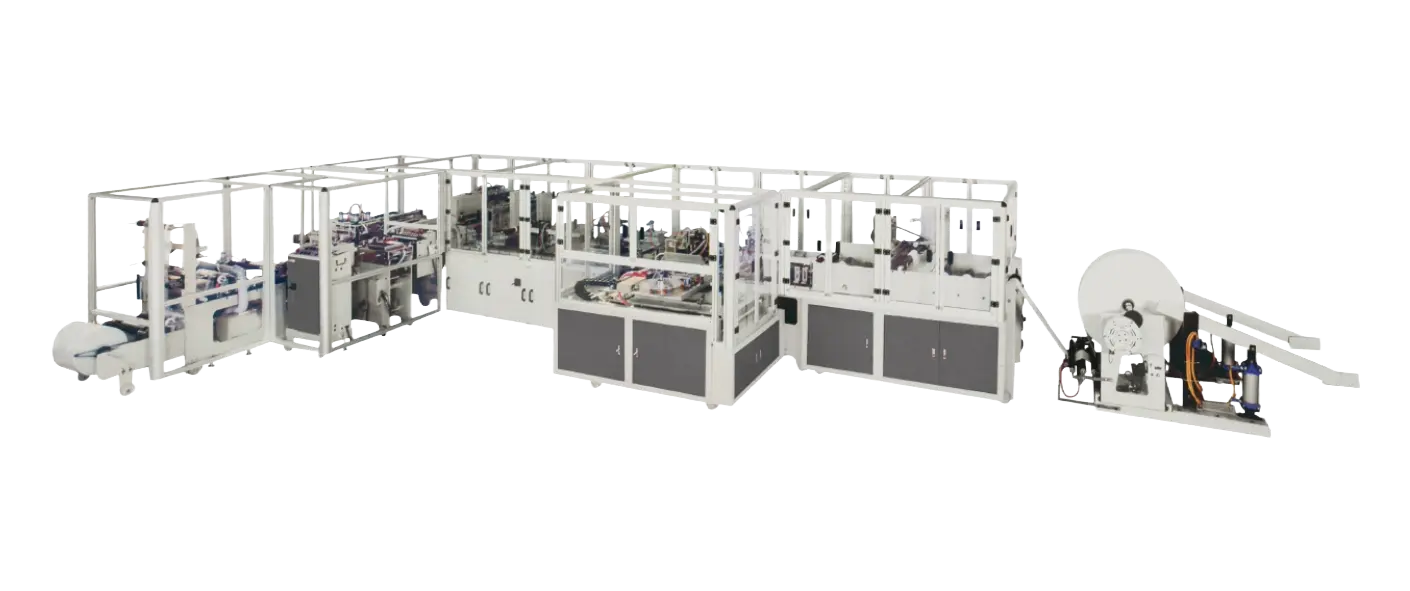

- 本機採用全自動伺服馬達電腦數值長度控制,操作簡便,產品規格一致,品質美觀。
- 製造過程,從整卷原料、自動對邊、修邊、燙金、打孔、切斷、自動計數、自動包裝,採全自動完成,不需人工輔助、增加產量,節省生產成本,提高競爭能力。
- 本機可選擇採用各種精密凡用打孔模具,其故障率低,並配合高科技電子控制,使打孔位四直非常精確,不易跑位。
- 本機採用高品質、高效率的零件,配合各種控制監視系統,使用運轉中有任何問題,皆可自動停機,並發出警報,可避免浪費原料,並保護機台。

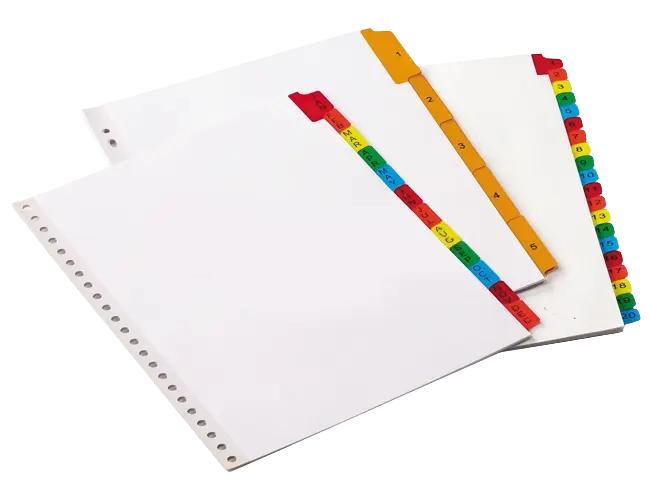

- 主要產品規格:A4、A3或其他規格。
規格部分
- 採用高品質印刷色膜配合伺服馬達電腦控制達到自動分色,分段。全套一次製造完成及自動包裝。

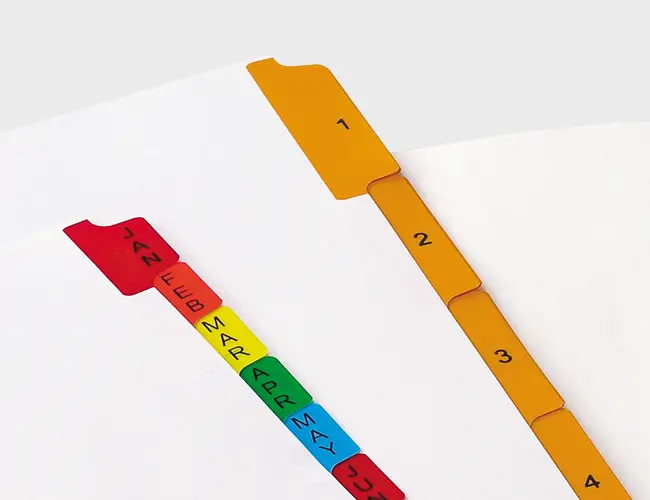

- 色膜可以自動燙金印字,可以隨時變更生產品種。
- 多色印刷色膜由敞公司製造,種類齊全歡採購選用,成本低、效率高。
Model | MGA-56MP-700 | |
Feed material | Paper, PVC, PP | |
Effective cutting width | 150 - 364 mm | |
Effective cutting lenght | 150 - 295 mm | |
Single layer film thickness | 0.06 - 0.20 mm | |
Output | (1) Mylar divider : 15 - 30 pcs/min (2) Index divider : 50 -100 pcs/min |
|
Machine dimension | 11,800 (L) × 4,650 (W) × 1,800 (H) mm | |
Net weight | 4,660 kg | |
Required power | 12 kw | |
Optional equipment | (1) Printing wheels ( Depend on client’s request ) :1 pc (2) Thermal edge laminating unit : 1 |
|
Remarks | As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice. |
