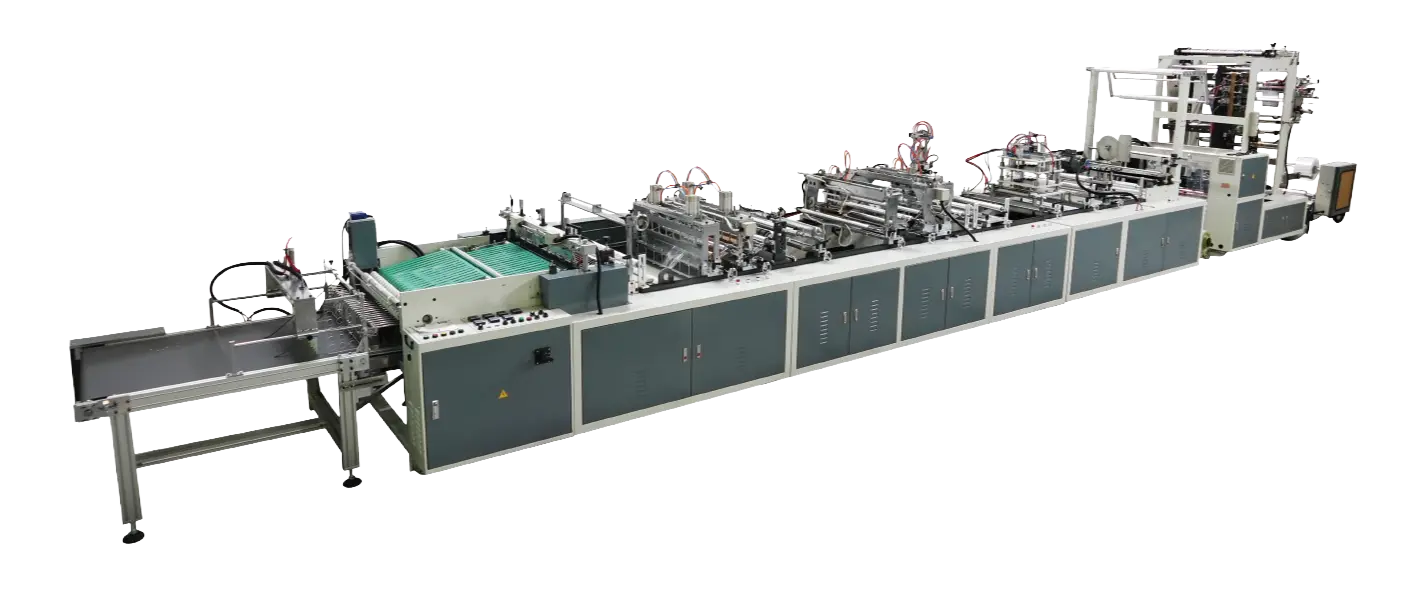

Grape Bag Holes Punching and Zipper Strip Hot Lamination Side Sealing Machine

分類: 封切機

國家: 台灣

電話: 886-6-5783420

傳真: 886-6-5783347

聯絡人: 張總經理

The PLC controller is made in Taiwan and very stable.
The size control of Grape Zipper Bag Side Sealing Machine is by servo motor. Made in Japan.
Grape Zipper Bag Side Sealing Machine is equipped mark sensor for printed material.
For getting the best quality of zipper bag product, unwinding station is mount the auto tension control.
The individual zipper strip unwinder with motor control to get the high quality of zipper sealing quality.
The ultrasonic welding station to crack the zipper on the edge of the bag for easy side sealing cutting.
V heat sealing system to make the Grape bag with flap bottom.
The precise hole punching mold station to punch the holes for grape bag and cherry bag.
The best design of Grape Zipper Bag Side Sealing Machine, made in Taiwan.

型式	MGA-06Z-800GP
機械規格
占地面積	12,000 (L) x 2,000 (W) x 2,250 (H)mm
淨重	6,470 kg
全台備電	11 kw
機械性能
使用原料	PP /PE / EVA
單層膜厚度	0.02 - 0.08 mm
Effective Bag Size Range
a. Standard Zipper Bag	85 - 600 (W) x 150 - 550 (L) mm
b. Grape Bag	85 - 600 (W) x 150 - 320 (L) mm
產量
a. Standard Zipper Bag	40 - 100 pcs /min (depend on size and thickness)
b. Grape Bag	40 - 65 pcs /min (depend on size and thickness)
