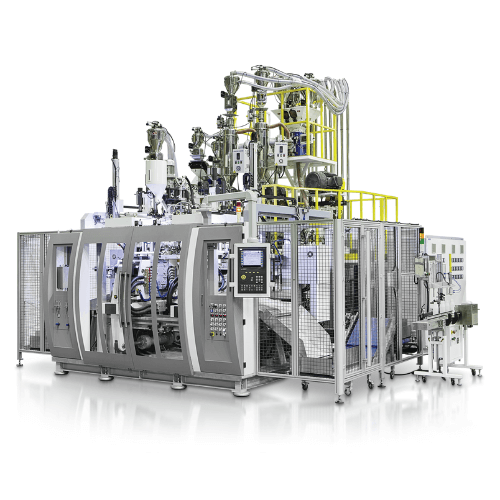

4-Layer Co-extrusion Blow Moulding Machine

塑料

HDPE, MFI=10

產品

20-30L jerry can, 20L: NET 1.5kgs/Gross:2.1kgs

產能

120 pcs/hr

押出機馬力

Exturder 55MM/75MM/55MM
Motor 40HP/100HP/40HP AC motor with inverter control
Output 80kg/hr / 200kg/hr / 80kg/hr

押出機螺桿

55MM mm dia., L/D=30:1
75MM mm dia., L/D=30:1

押出量

300kg/hr

模頭設計

3 layers Single Head

油液壓馬達

40HP X 4P + 3HP X 4P Induction motor with hydraulic pump
With accumulators

夾模板 ( H x W )

720 mm (H) x 550 mm (W)

夾模力

30 tons (300 KN)

夾模距離

480MM - 1000MM

模具厚度

500 MM

壓力值

180kg/c㎡(max.)

冷卻系統

Two station, one is combined with deflash position;

除胚裝置

Top/bottom and handle deflash
