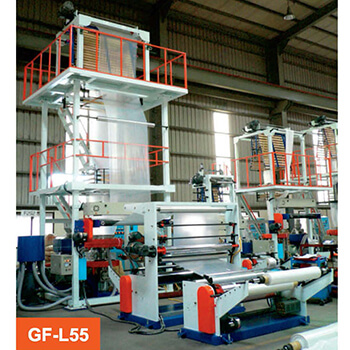

GF-L55 是一台 LD／LLDPE（低密度與線性低密度聚乙烯）單層吹膜機，在 GF-L 系列中屬中間機型，系列從 GF-L35 到 GF-L65。本機用於生產包裝與製袋用的聚乙烯薄膜，最大膜寬 1000 mm。押出機採用 55 mm 螺桿，由 40 HP 馬達搭配變頻器驅動，配 200 mm 模頭與雙唇風環。
額定產量 90 KG/HR。整機由獨立配電箱控制，收膜輥幅寬 1100 mm，並以單站手動式表面收捲機收捲。選配項目包含自動吸料機、手動換網器、壓力錶、旋轉模頭、電暈處理機、HDPE 模頭與風環、飛刀、第二站收捲機、氣脹軸與冷風機，同一台基本機可依需求配成 HDPE 用途或銜接後段印刷。
|
MODEL |
GF-L35 |
GF-L45 |
GF-L50 |
GF-L55 |
GF-L65 |
|
MATERIAL TO BE USED |
LD/LLDPE (Low Density & Linear Low Density Polyethylene) |
||||
|
MAX. FILM WIDTH |
400 mm |
600 mm |
800 mm |
1000 mm |
S type:1200mm
E type:1500mm
|
|
EXTRUDER SIZE |
35 mm |
45 mm |
50 mm |
55 mm |
65 mm |
|
MOTOR+INVERTER |
10 HP |
20 HP |
30 HP |
40 HP |
60 HP |
|
DIES |
80 mm |
120 mm |
150 mm |
200 mm |
S type:250mm
E type:300mm
|
|
MAX.CAPACITY |
25 KG/HR |
40 KG/HR |
60 KG/HR |
90 KG/HR |
140 KG/HR |
|
CONTROL PANEL |
INDEPENDENT TYPE SWITCH BOARD |
||||
|
AIR RING |
1 SET, DUALLIP AIR RING |
||||
|
ROLLER WIDTH |
500 mm |
700 mm |
900 mm |
1100 mm |
S type:1300mm
E type:1600mm
|
|
SURFACE WINDER |
ONE STATION, MANUAL TYPE |
||||
|
OPTIONS |
Auto Loader, Manual Screen Changer,
Pressure Gauge, Die Rotating Unit, Corna,
HDPE Dies/Air ring, Flying Knife, 2nd Station Winder, Air Shaft, Air Chiller
|
||||
|
* Details are available with quotation, specifications could be changed upon request. |
|||||
