- 無段變速型減速齒輪箱,構造簡單,可依客戶需要配備V.S Motor或DC馬達或變頻馬達,以任意調整螺桿轉速。
- 螺桿皮輸料筒均採用特殊鋼加工,後經窒化處理研磨,表面鍍硬鉻,耐高溫,耐磨,可以高速長時間連續運轉。
- 螺桿長徑比32:1配以特殊設計之螺旋模頭及風圈,可以得到厚度均勻,韌性特強,透明度極高之產品,並依不同之需要配以不同種類之捲取裝置。

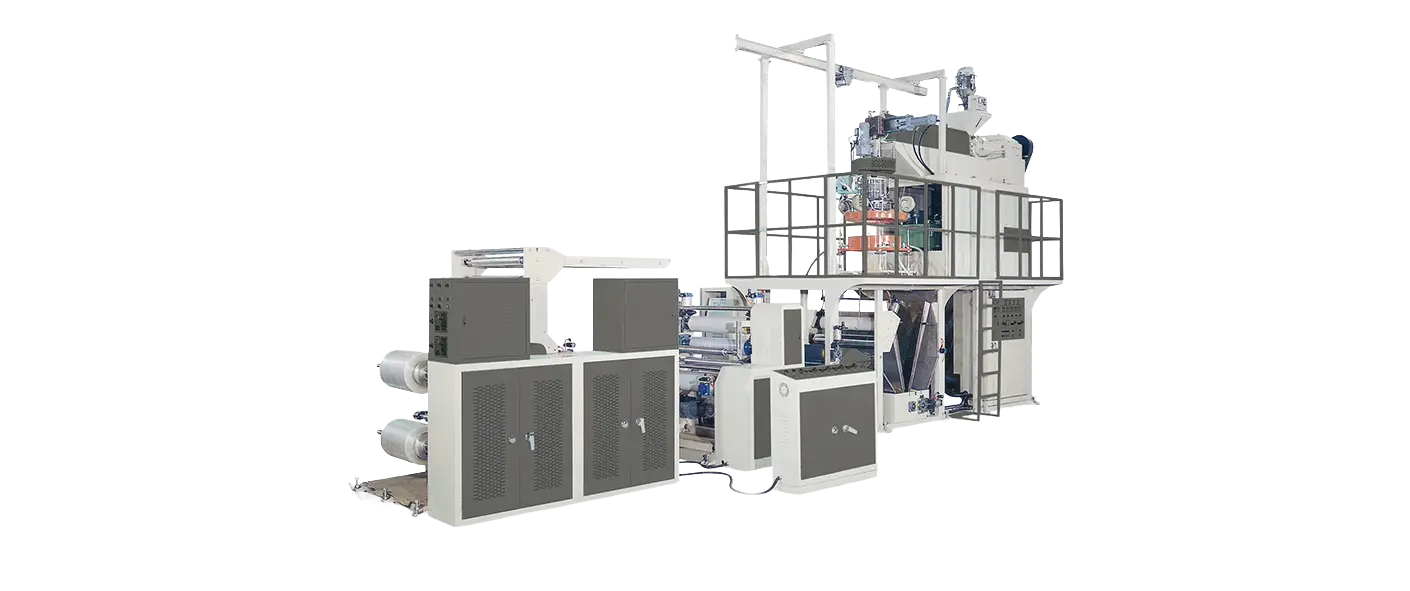

機台型號
- MGPP-75
- MGPP-65
- MGPP-55
- MGPP-45
Model | MGPP-45 | MGPP-55 | MGPP-65 | MGPP-75 |
Applicable resin | P.P. granules | |||
Thickness Range | 0.02 - 0.08 mm | |||
Lay flat film width | 100 - 400 mm | 150 - 550 mm | 200 - 700 mm | 550 - 1000 mm |
Output | 10 - 35 kg/hr | 20 - 50 kg/hr | 20 - 60 kg/hr | 20 - 100 kg/hr |
Machine dimension | 4,000 (L) × 1,600 (W) × 3,400 (H) mm | 4,500 (L) × 2,000 (W) × 4,300 (H) mm | 6,360 (L) × 2,100 (W) × 4,700 (H) mm | 7,520 (L) × 2,200 (W) × 5,200 (H) mm |
Net weight | ||||
Required power | ||||
Optional equipment | (1) 5TON chiller : 1 (2) 200 KG mixer with drier : 1 (3) Hydraulic Cylinder : 1 (4) Corona treatment : 1 (5) Double side embossing station : 1 (6) Double side winding device : 1 |
|||
Remarks | As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice. |
